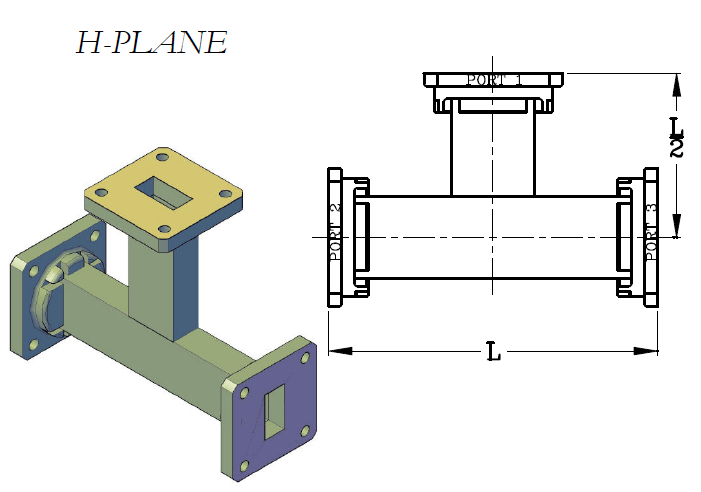

Rectangular Waveguide E-Plane (Series), H-Plane (Shunt), & Hybrid Tees

Space Machine offers a standard product line of waveguide tees covering waveguide sizes WR28 thru WR284. Additional sizes and configurations are available on request. For E and H plane tees please specify whether the tee is to be used as a combiner or divider. Over 20% bandwidth VSWR is 1.2:1 max for all ports, power split is ± 0.1dB and collinear arm isolation is 15 dB minimum. For hybrid tees, over 20% bandwidth VSWR is 1.2:1 max for all ports, power split is ± 0.1dB and E and H arm isolation is 30dB minimum. See next page for standard dimensions.

SKU: N/A Category:

Models

Sold By: Space Machine Direct Sales
Download Download Technical Specifications

Highlights

Space Machine offers a standard product line of waveguide tees covering waveguide sizes WR28 thru WR284. Additional sizes and configurations are available on request. For E and H plane tees please specify whether the tee is to be used as a combiner or divider. Over 20% bandwidth VSWR is 1.2:1 max for all ports, power split is ± 0.1dB and collinear arm isolation is 15 dB minimum. For hybrid tees, over 20% bandwidth VSWR is 1.2:1 max for all ports, power split is ± 0.1dB and E and H arm isolation is 30dB minimum. See next page for standard dimensions.

Ordering Information

Rectangular Waveguide E-Plane (Series), H-Plane (Shunt), & Hybrid Tees



Models

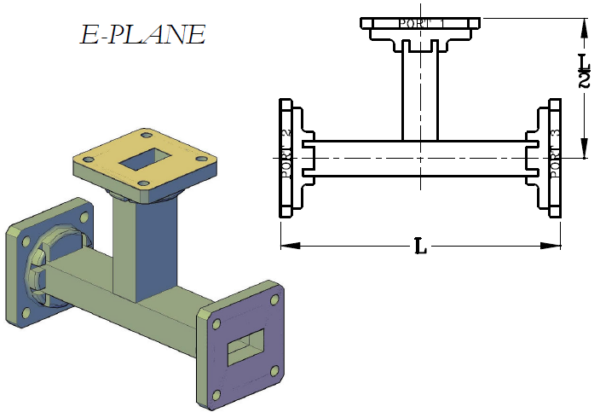

    Rectangular Waveguide E-Plane

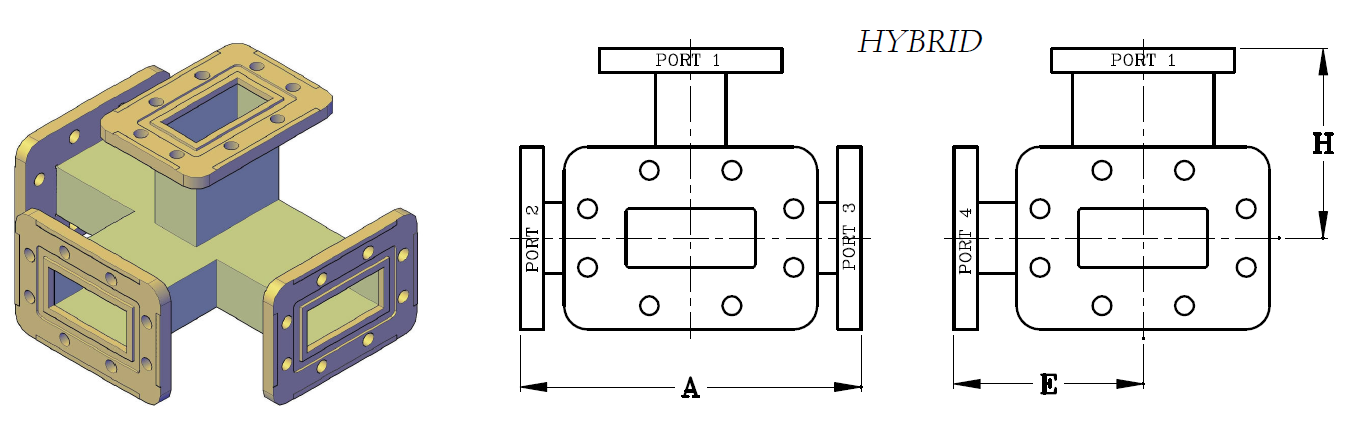

    • Model: THB284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • A: 10.25

    • E: 5.25

    • H: 5.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • A: 6.25

    • E: 3.25

    • H: 3.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • A: 8.25

    • E: 4.25

    • H: 4.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • A: 5.75

    • E: 3.00

    • H: 3.00

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB28-

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • A: 2.25

    • E: 1.25

    • H: 1.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB34-

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

    • A: 2.25

    • E: 1.25

    • H: 1.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB42-

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • A: 2.25

    • E: 1.25

    • H: 1.25

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB51-

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • A: 2.75

    • E: 1.50

    • H: 1.50

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • A: 2.75

    • E: 1.50

    • H: 1.50

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • A: 2.75

    • E: 1.50

    • H: 1.50

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • A: 3.25

    • E: 1.75

    • H: 1.75

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • A: 3.75

    • E: 2.00

    • H: 2.00

    • Length:

    Rectangular Waveguide E-Plane
    • Model: THB137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • A: 5.25

    • E: 2.75

    • H: 2.75

    • Length:

    Rectangular Waveguide E-Plane
    • Model: TxP159-

    • WR: 159

    • Frequency (GHz): 4.90 - 7.05

    • A:

    • E:

    • H:

    • Length: 6.00

    Rectangular Waveguide E-Plane
    • Model: TxP187-

    • WR: 187

    • Frequency (GHz): 3.95 - 5.85

    • A:

    • E:

    • H:

    • Length: 7.00

    Rectangular Waveguide E-Plane
    • Model: TxP229-

    • WR: 229

    • Frequency (GHz): 3.30 - 4.90

    • A:

    • E:

    • H:

    • Length: 8.00

    Rectangular Waveguide E-Plane
    • Model: TxP284-

    • WR: 284

    • Frequency (GHz): 2.60 - 3.95

    • A:

    • E:

    • H:

    • Length: 9.00

    Rectangular Waveguide E-Plane
    • Model: TxP28-

    • WR: 28

    • Frequency (GHz): 26.50 - 40.00

    • A:

    • E:

    • H:

    • Length: 2.00

    Rectangular Waveguide E-Plane
    • Model: TxP34-

    • WR: 34

    • Frequency (GHz): 22.00 - 33.00

    • A:

    • E:

    • H:

    • Length: 2.00

    Rectangular Waveguide E-Plane
    • Model: TxP42-

    • WR: 42

    • Frequency (GHz): 18.00 - 26.50

    • A:

    • E:

    • H:

    • Length: 2.00

    Rectangular Waveguide E-Plane
    • Model: TxP51-

    • WR: 51

    • Frequency (GHz): 15.00 - 22.00

    • A:

    • E:

    • H:

    • Length: 2.00

    Rectangular Waveguide E-Plane
    • Model: TxP62-

    • WR: 62

    • Frequency (GHz): 12.40 - 18.00

    • A:

    • E:

    • H:

    • Length: 3.00

    Rectangular Waveguide E-Plane
    • Model: TxP75-

    • WR: 75

    • Frequency (GHz): 10.00 - 15.00

    • A:

    • E:

    • H:

    • Length: 3.00

    Rectangular Waveguide E-Plane
    • Model: TxP90-

    • WR: 90

    • Frequency (GHz): 8.20 - 12.40

    • A:

    • E:

    • H:

    • Length: 4.00

    Rectangular Waveguide E-Plane
    • Model: TxP102-

    • WR: 102

    • Frequency (GHz): 7.00 – 11.00

    • A:

    • E:

    • H:

    • Length: 4.00

    Rectangular Waveguide E-Plane
    • Model: TxP112-

    • WR: 112

    • Frequency (GHz): 7.05 - 10.00

    • A:

    • E:

    • H:

    • Length: 4.00

    Rectangular Waveguide E-Plane
    • Model: TxP137-

    • WR: 137

    • Frequency (GHz): 5.85 - 8.20

    • A:

    • E:

    • H:

    • Length: 5.00

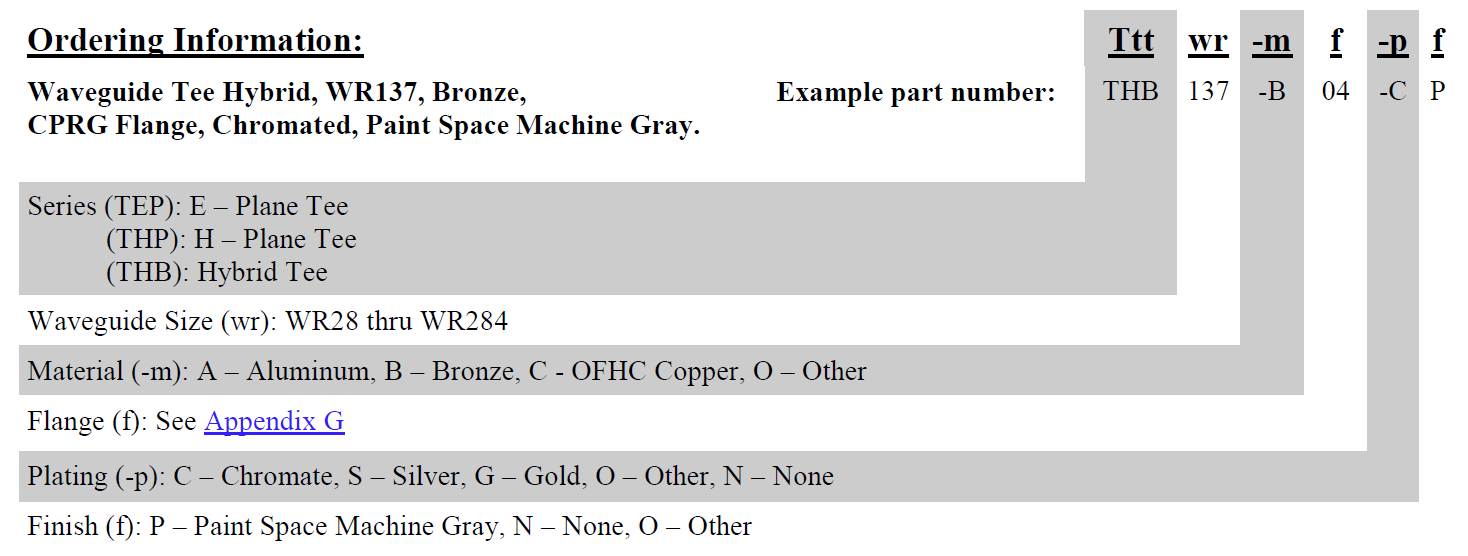

    Ordering Information

    Rectangular Waveguide E-Plane (Series), H-Plane (Shunt), & Hybrid Tees
    Example part number:
    Waveguide Tee Hybrid, WR137, Bronze,
    CPRG Flange, Chromated, Paint Space Machine Gray.
    GET A QUOTE
    Series

    TEP (E – Plane Tee), THP (H – Plane Tee), THB (Hybrid Tee)

    Waveguide Size (wr)

    WR28 thru WR284

    Material (m)

    A – Aluminum, B – Bronze, C – OFHC Copper, O – Other

    Flange (f)

    See Appendix G

    Plating (-p)

    C – Chromate, S – Silver, G – Gold, O – Other, N – None

    Finish (f)

    P – Paint Space Machine Gray, N – None, O – Other

    We’re Your Partner from Prototyping to Production and Beyond

    Space Machine offers a range of solutions to help review prototypes and scale up your production waveguides and parts.Our world class manufacturing facility expertise ensures your order is delivered to your exacting specifications.

    Focus on Quality

    Space Machine recognizes the quality of its products,the satisfaction of its customers and the health and safety of its workers as integral parts of its management function. To this end, the Company has developed a quality management system in accordance with ISO 9001:2015 and AS9100D to ensure customer satisfaction, continual improvement and compliance with all applicable requirements.
