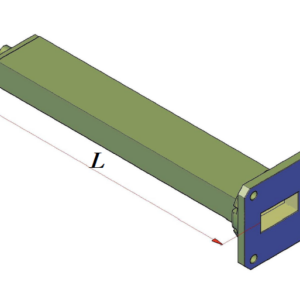

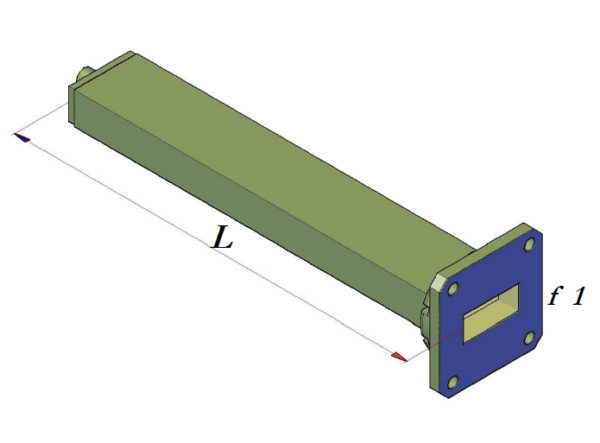

Rectangular Waveguide Precision Termination
Space Machine offers a standard product line of precision terminations covering waveguide sizes WR28 thru WR650.
VSWR is held to 1.03:1 maximum over the full waveguide band.
Additional sizes and configurations are available upon request.
Models
Download Technical Specifications Highlights
Space Machine offers a standard product line of precision terminations covering waveguide sizes WR28 thru WR650.
VSWR is held to 1.03:1 maximum over the full waveguide band.
Additional sizes and configurations are available upon request.

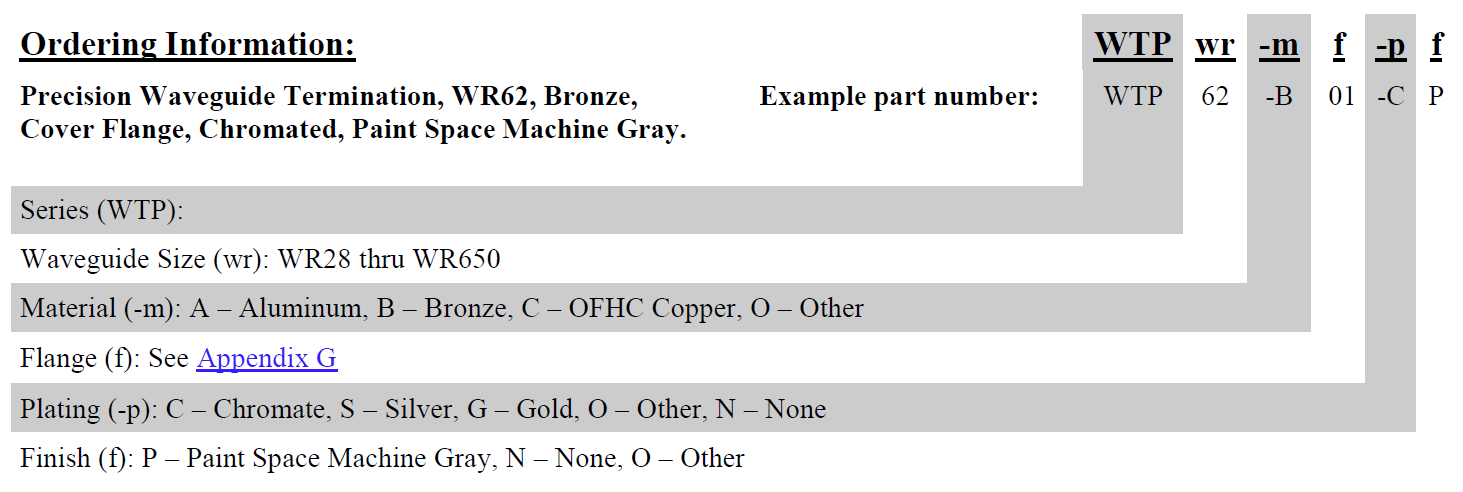

Ordering Information
Models
Ordering Information
Rectangular Waveguide Precision Termination
Example part number:
Precision Waveguide Termination, WR62, Bronze,
Cover Flange, Chromated, Paint Space Machine Gray.
GET A QUOTEPrecision Waveguide Termination, WR62, Bronze,
Cover Flange, Chromated, Paint Space Machine Gray.
| Series | WTP |
|---|---|
| Model | WTP28-, WTP34-, WTP42-, WTP51-, WTP62-, WTP75-, WTP90-, WTP102-, WTP112-, WTP137-, WTP159-, WTP187-, WTP229-, WTP284-, WTP340-, WTP430-, WTP650- |
| Waveguide Size (wr) | WR28 thru WR650 |
| Material (-m) | A – Aluminum, B – Bronze, C – OFHC Copper, O – Other |
| Flange (-f1 f2) | See Appendix G |
| Plating (-p) | C – Chromate, S – Silver, G – Gold, O – Other, N – None |
| Finish (f) | P – Paint Space Machine Gray, N – None, O – Other |
